Features

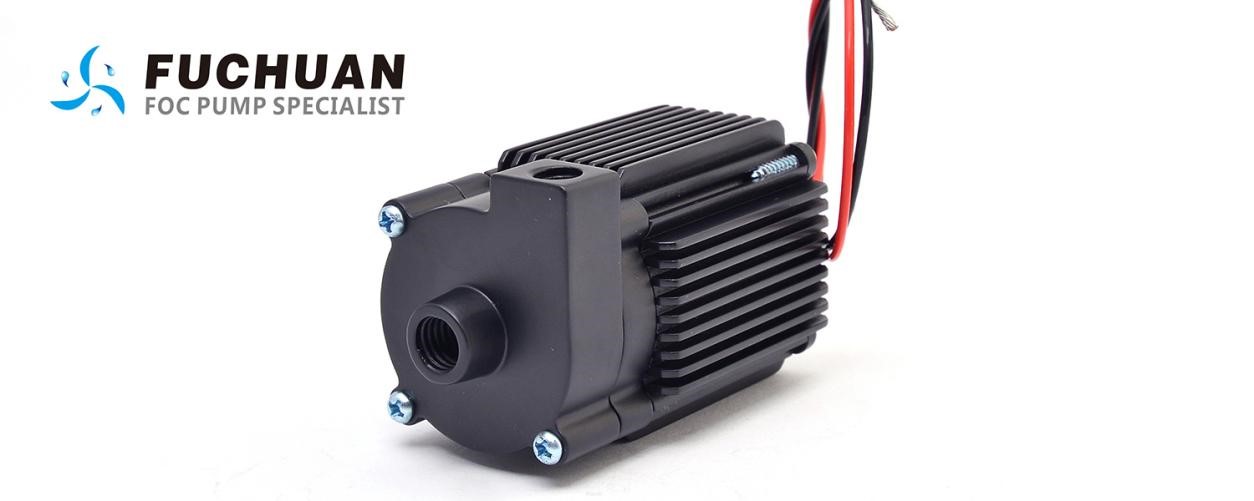

Our BL series design features small canned motor centrifugal pumps controlled by FOC solution. They are designed to be highly efficient, quiet and compact. A variety of features, including a static seal design to prevent leakage, flexible speed control to be integrated with customers’ different systems, which enable the pumps to meet a full spectrum of user needs, with emphasis on energy saving, intelligent control and free of maintenance.

Low maintenance costs - Superior engineering combined with built-in safety, BL is designed to last the life of your system; no service calls or parts kits required.

Ease of integration - BLDC motors with intelligent drive, speed can easily be adjusted to meet different systems’ requirement.

Stable operation - BL’s optimized motor design greatly eliminate harmonics generation and the harmful heat generated by eddy current, hysteresis, which ensure the pump operating in the healthy(non-overheated) environment, and long working life(25K hours) can be guaranteed.

Reduce system noise - With documented sound levels at 35 dB or lower, BL allows for whisper-quiet operation.

Protection

Under/Over voltage

Over current

Dry run

Phase loss

Locked rotor protection

Typical Applications

Equipment cooling: computer server, computer CPU, computer display card

Automatic vending machine: dispensers

HVAC: air conditioning system, air humidifier

Home appliance: water drinking machine, coffee machine, water mattress, aquarium

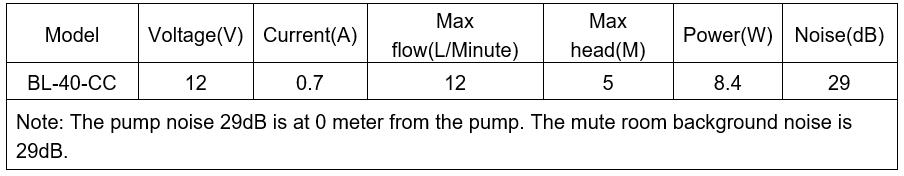

Specification

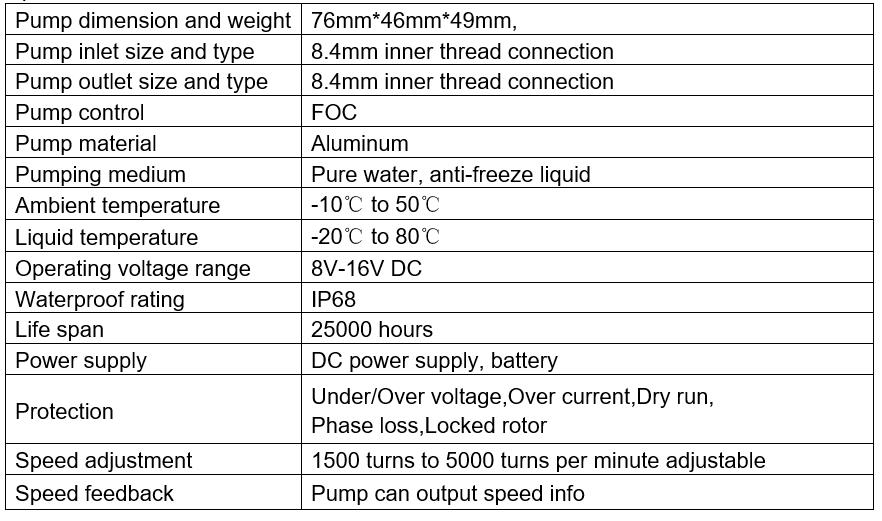

Specification characteristics

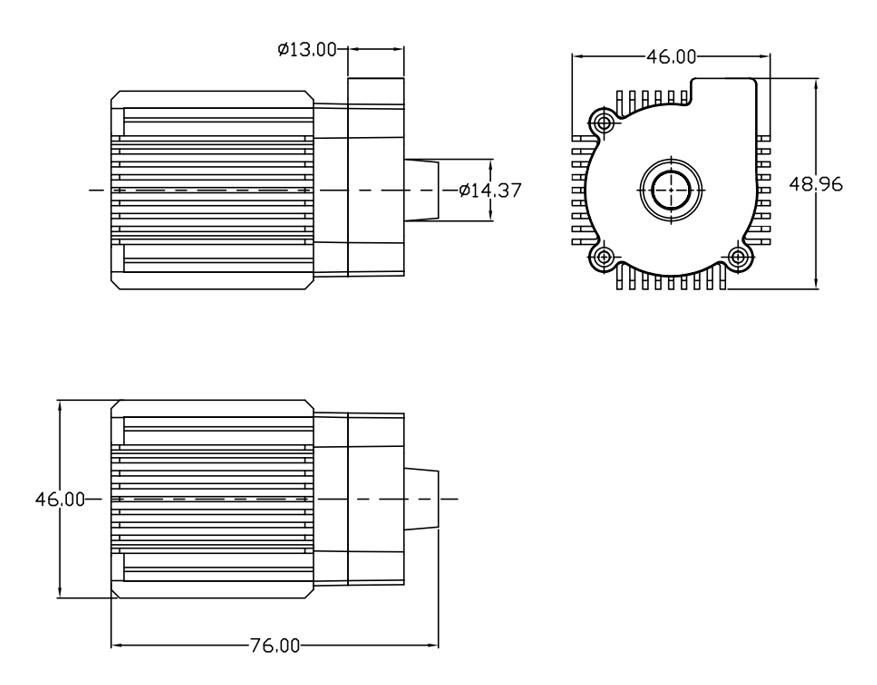

Dimension

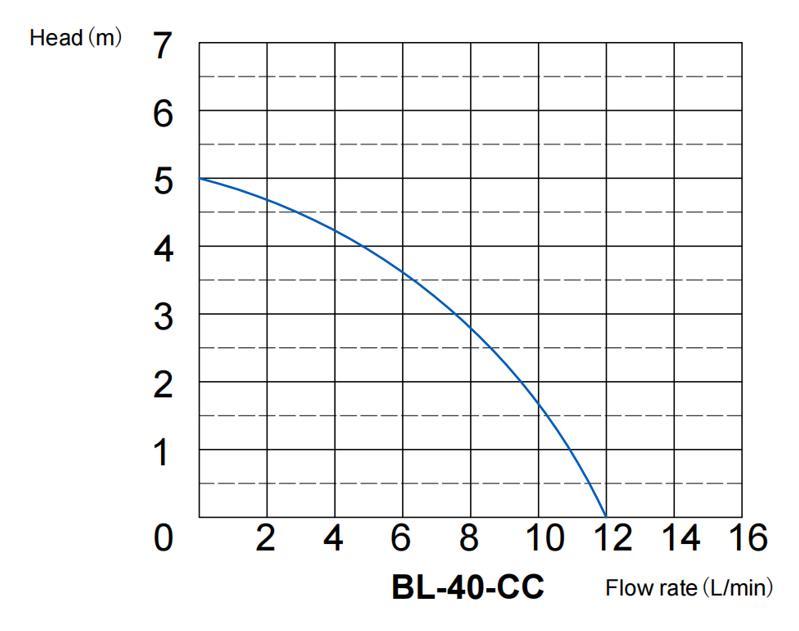

Performance curve
